JACKS & PLUGS
Jack Series
Littel Phone, Hi-D, Right Angle PC Mount 1/4", 1/4" Extension Jack Series

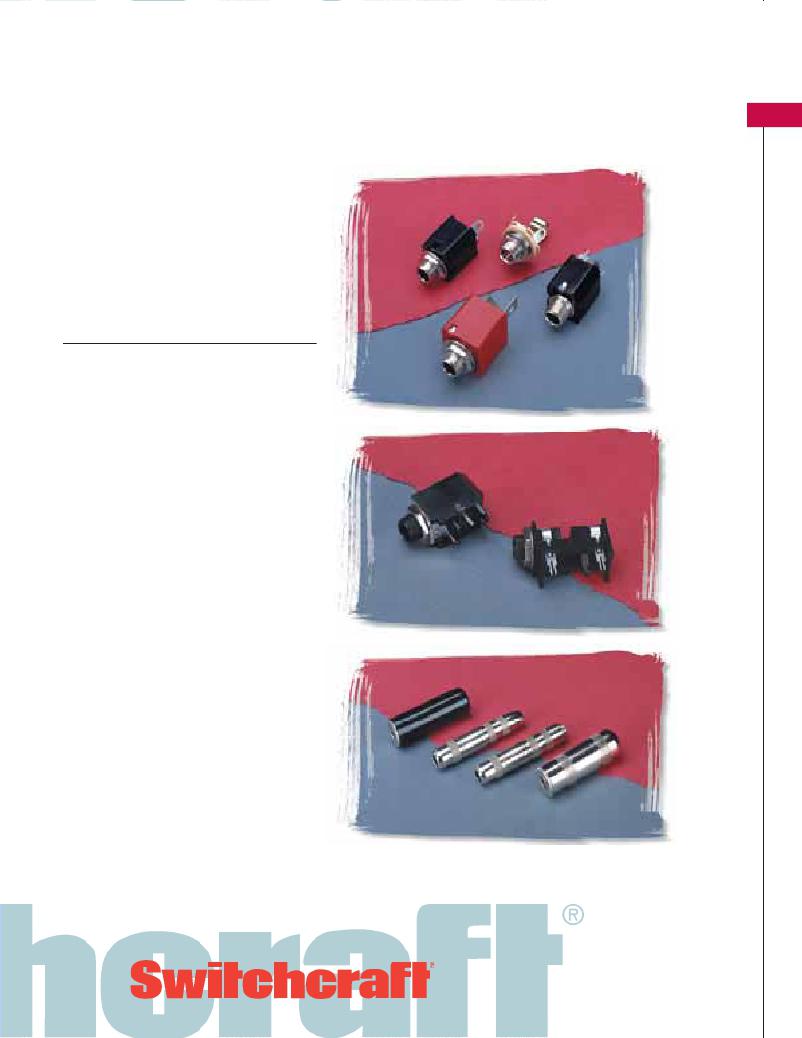

Switchcraft offers an extensive variety of
1/4" commercial jacks. Littel phone jacks
offer open frame designs, Hi-D jacks offer
65
an enclosed, 94V-0 rated thermoplastic
housing, our RA jacks are designed for right
angle PC board layouts, and our Extension
jacks allow the end user to extend cable
lengths. All offer a wide range of options to
fit a multitude of needs. For mating plugs,
look to page 83 for all of the various options.
Specifications
Mechanical
Life: 10,000 insertion/withdrawal cycles,
minimum
Electrical
Contact Resistance: .030 ohms
maximum (initial), .050 ohms
maximum (after humidity, durability
exposure) Per Mil-Std-202E
Insulation Resistance: 10,000 MW
minimum (initial), 1,000 MW minimum
(after humidity)
Dielectric Withstanding Voltage: 500V,
60 Hz (rms) AC
Contact Rating: 1A, 25 VDC
Environmental
Thermal Range: -55?C to +85?C
(non-operating); -20?C to +65?C
(operating)
Thermal Shock: Per Mil-Std-202,
method 107
Humidity: Per Mil-Std-202, method 106
111
RN112APC
Z15J
11
114BPCS
RA49B11
Salt Spray: Per Mil-Std 202, method 101
Materials
Mounting Bushing: Copper alloy,
80
120
133
128
nickel-plated
(RN & RA Series: Thermoplastic)
Insulation: Rigid plastic
Springs: Special copper alloy.
Integral contacts are standard in the iso-
lated switching circuits
Sleeve Terminal: Copper alloy
Hardware: Supplied with one Number
P10001 copper alloy nickel-plated hex
nut, and one Number S1022
See next page for ordering information
steel nickel-plated washer
